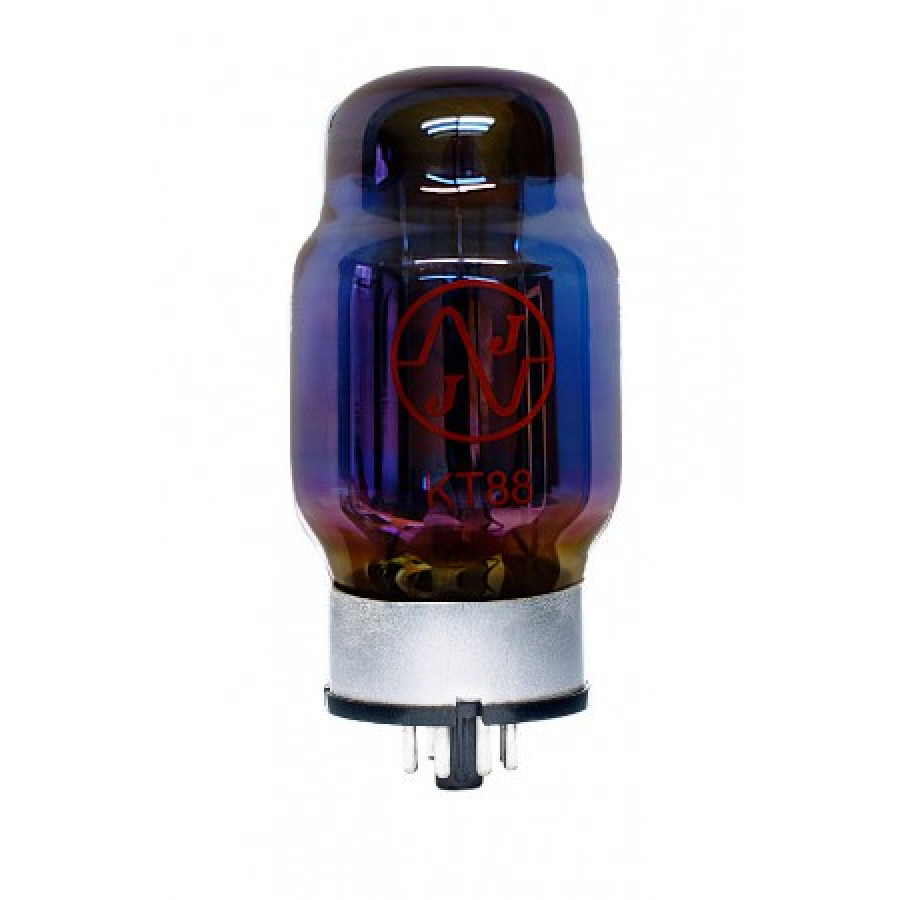

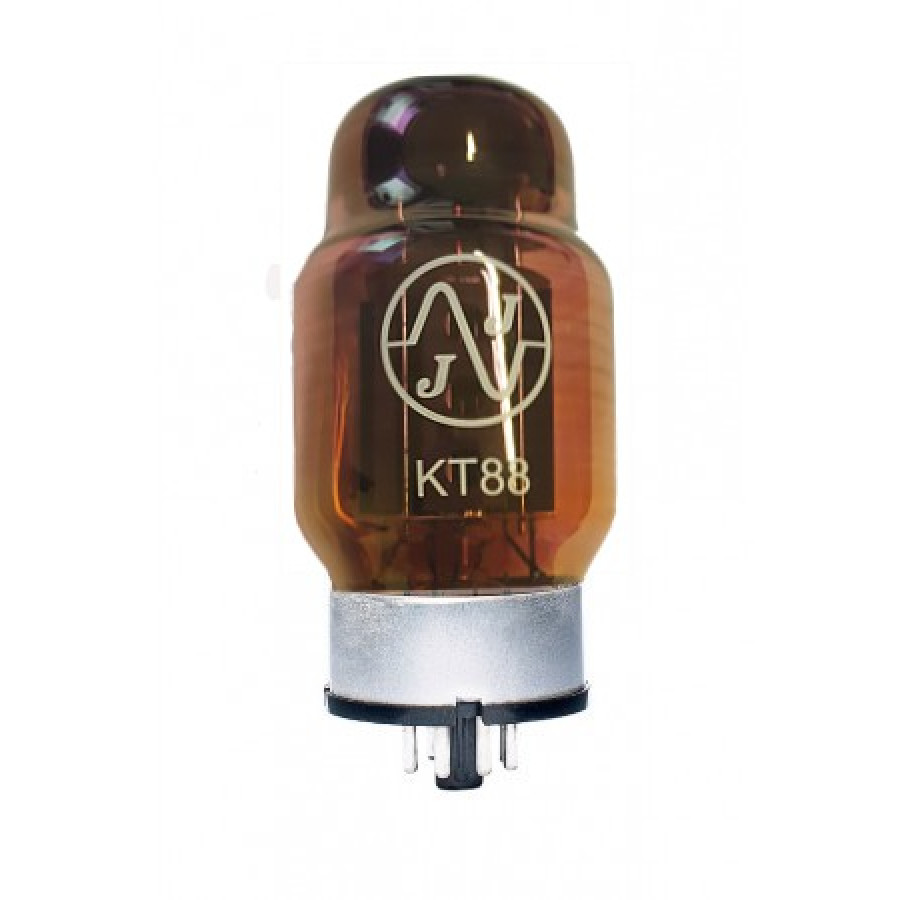

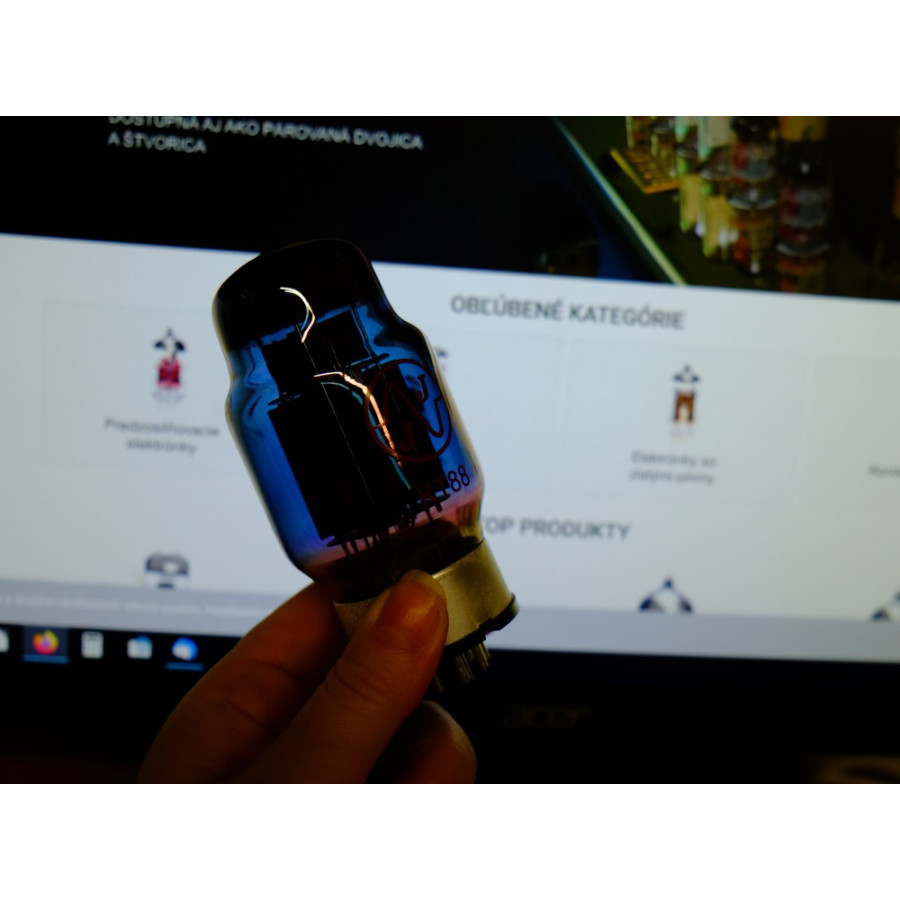

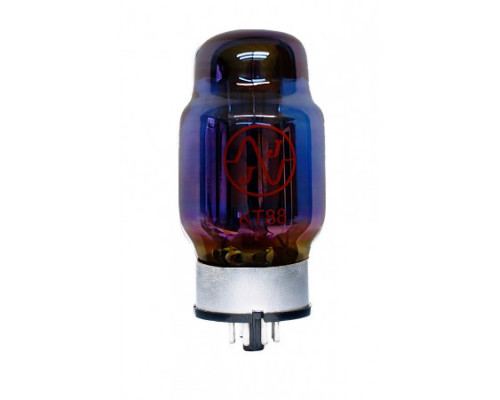

KT88 red/blue

A.F. BEAM PENTODE
KT88 is a beam output pentode with an octal base and power of 42W. Very powerful, with strong bass and very bright highs. It can also be used in 6550 amplifiers.

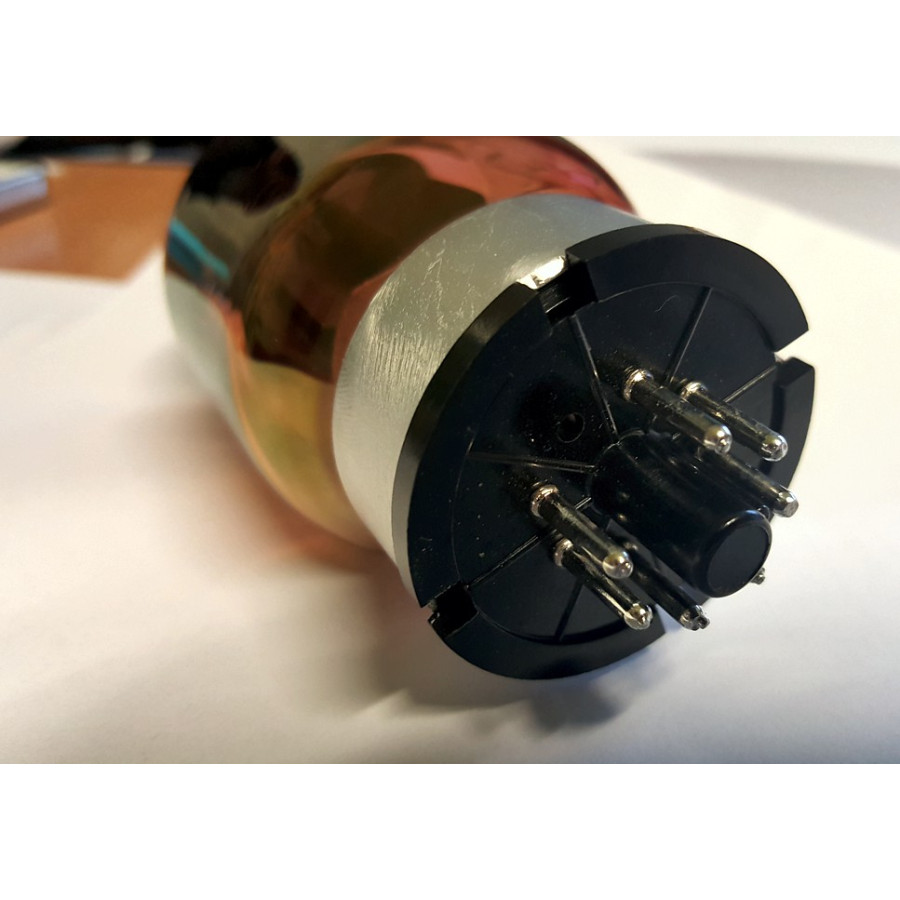

Base: OCTAL
Uf = 6,3 V
If = ca 1,6 A

Typical characteristic:
Ua = 250 V
Ug2 = 250 V
Ia = 140 mA
Ig2 = max. 7 mA
-Ug1 = 15 V
S = 11,5 mA/V
Ri = 12 kΩ
μ-g1-g2 = 8

Triode Conncected
Ua, g2 = 250 V
Ia+g2 = 147 m A
-Ug1 = 15 V
S = 12 mA/V
Ri = 670 Ω
μ = 8
