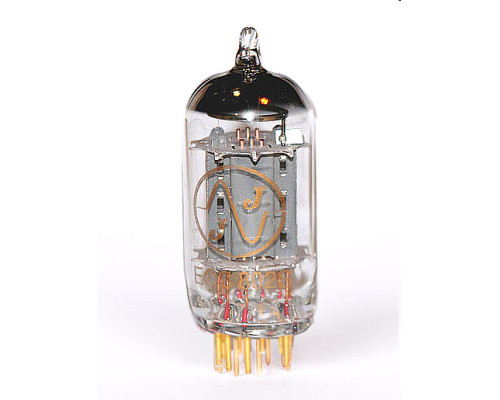

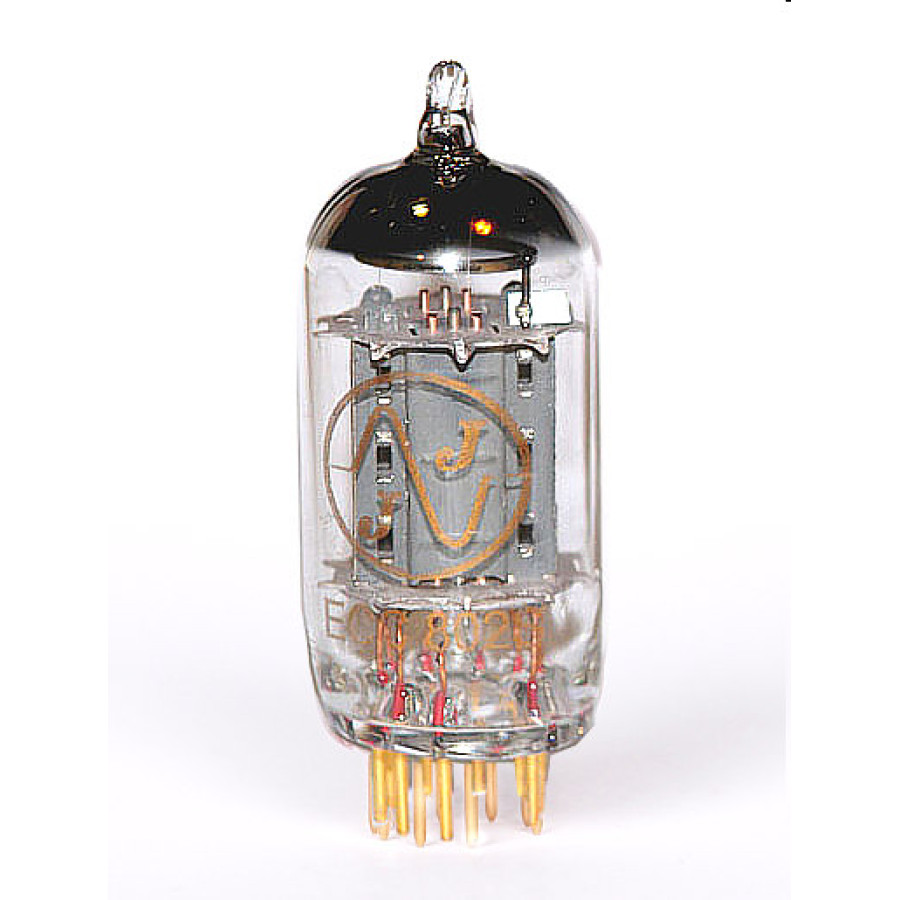

ECC802 S gold
- JJ electronic
- Product Code: gold04
- Availability: 2 - 3 days
-
33.95€
- Ex Tax: 27.60€
- 30-day low: 33.95€
A.F. TWIN TRIODE
ECC802S is a long plated 12AU7 medium gain pre-amplifying double triode. Long plate provides a very rich and full sound from the deep bass to the high end.
Base: NOVAL
Uf = 6,3 V/12,6 V
If = ca. 300/150 mA

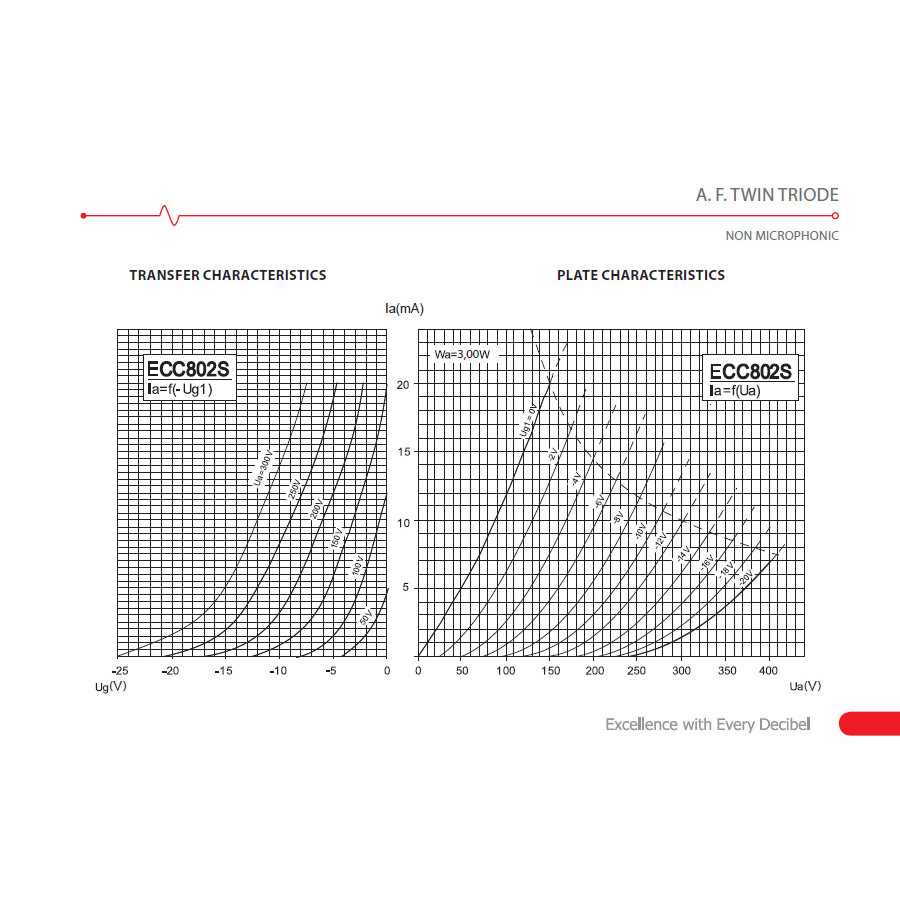

Typical characteristic:
Ua = 250 V
Rk = 800 Ω
Ia = 10,5 mA
S = 2,2 mA/V
Ri = 7,7 kΩ
μ = 17
